1. INTRODUCTION
Vietnam is known for its rich biodiversity, with many nutritious tropical fruits easily found in the Mekong Delta region. Banana (Musa species) is a popular and nutritious tropical fruit and is produced and consumed yearly in our country, and it is an important crop in subtropical and tropical regions which provide a great source of nutrients and energy. Bananas are generally classified as “dessert” sweet bananas, which are cooked and eaten raw but can also be eaten when fully ripe [1]. The main by-product of bananas is the peel, which accounts for 18%–30% of the whole fruit [2]. Several recent studies reported that banana peel contained potential antioxidant compounds such as vitamin A, vitamin C, carotenoids, and phenolic compounds, which are the most abundant antioxidants in the pulp of bananas as well as in banana peels [3]. Banana peel is also known to have higher antioxidant activity than banana pulp [4,5], containing high antioxidant capacity, such as phenolic compounds, anthocyanins, carotenoids, catecholamines, sterols, and triterpenes [6]. Preliminary studies suggested that it has a large amount of phenolic compounds and potent antioxidant properties, which may contribute to the plant's medicinal properties. Moreover, it may be used for medicinal purposes or functional food products.
Extraction plays an important role in the production and purification of bioactive compounds from plant materials and by-products [7]. Some phytochemical extraction techniques can be divided into three groups, that is, traditional, innovative, or a combination of these two techniques. The extraction efficiency of antioxidant compounds depends on several factors including extraction method, time, temperature, sample size, sample texture, solvent type and concentration, pH, ratio of sample and solvent, and the diffusivity of the solvent in the materials [8–10]. Due to the complexity of the structure and properties of the bioactive compounds and the structure of the extracted materials, no universal extraction procedure is available [11]. The effect of extraction parameters on extraction yield of phytochemicals was reported for different plant materials, for example, the effect of extraction conditions on the yield of catechin extracts from green tea leaves [12] and tiger nut by-products [13]. The study on extracting polyphenol content and antioxidant capacity from orange peels showed an important influence of temperature [14]. In fact, it is also necessary to have separate extraction parameters for each type of material due to the difference and diversity in phytochemical content [15].
The response surface methodology (RSM) was used to evaluate the effects of several process variables and their interactions [16]. RSM is a set of statistical and mathematical techniques useful for developing, improving, and optimizing processes, whereas the response of interest is influenced by a number of factors (independent variables). RSM not only determines the effect of the independent variables but also creates a mathematical model that describes chemical or biochemical processes [17]. There have been very few previous studies on the effect of solvents and extraction parameters on the extraction yield of phenolic compounds and antioxidants from banana peels. The selection of the appropriate extraction solvent is an overlooked variable for extraction efficiency and ending applications. According to the Food and Drug Administration, there are a number of solvents that are permitted for use in the food and pharmaceutical sectors [18], because of toxic solvent residues in the extracts.
In the present study, a dual solvent system of ethanol and water was applied with the consideration for the future use of the extracts as dietary supplements or food preservatives. Therefore, the aim of this study was to investigate the effects of different solvents which are allowed to be applied in the food and pharmaceutical fields and to determine the influence of optimizing the extraction parameters using conventional solvent techniques to maximize the recovery of antioxidant compounds from banana peel.
2. MATERIALS AND METHODS
2.1. Sample Preparation
Banana peels are obtained from the processing of banana products with simultaneous research in our laboratory. It is washed thoroughly with tap water, then chopped, and soaked in sodium metabisulfite (500 ppm). The peels were dried at 60°C until the moisture content was less than 12%. The dried peel was ground into a fine powder and sieved. Finally, the obtained powder was packed in vacuum PA bags and stored at room temperature (28 ± 2oC) for further use.
This study was conducted from June 2020 to May 2021 at the Department of Food Technology, Can Tho University, Vietnam.
2.2. Chemicals and Reagents
Gallic acid, quercetin, and Folin-Ciocalteu were purchased from Sigma-Aldrich (MO). The deionized water and other chemicals used in this study were of analytical reagent grade.
2.3. Optimization of Extraction Process
Dried samples (2 g) were used for extraction. The optimization of the extraction process was designed using the Box–Behnken design according to the RSM [17] with six center runs that were used, giving a total of 18 experimental runs. Each factor was surveyed with three levels, coded as –1, 0, and + 1. The dependent variables (responses) analyzed were TPC and TFC of product. The levels of variables are shown in Table 1. The transparent extracts were obtained by filtering (Whatman No. 4 filter paper) and then TPC and TFC of the extracts were analyzed.
 | Table 1: Experimental range and levels of the independent variables. [Click here to view] |
2.4. Determination of TPC
The Folin-Ciocalteu assay was used for this method [19]. The absorbance of the reaction solution containing a polyphenol compound extracted from banana peel and reagent was measured at 738 nm. TPC was calculated as mg gallic acid equivalent per gram sample (mgGAE/g) through a standard curve obtained (y = 0.0025x + 0.0632, R² = 0.9957).
2.5. Determination of TFC
The reaction between the flavonoid compounds in the extract with aluminum chloride (10%) formed a yellow solution, which was recorded at 415 nm [20]. Results are based on a standard curve measured at the same wavelength (y = 0.1273x − 0.7303, R2 = 0.9903). TFC is calculated as mg of quercetin equivalent per gram sample (mgQE/g).
2.6. Statistical Analysis
The Statgraphics Centurion XV.I application was used to fit the model to the observed data using the RSM. The effect of the independent variables on the model for response (Y) is shown in
Y = b + b1A + b2B + b3C + b4AB + b5AC + b6BC + b7A2 + b8B2 + b9C2 (1)
where A, B, and C are independent variables and b, b1, b2,...b9 are offset, interaction, and squared effects. The selection model was mainly based on the R2 value obtained from the regression.
3. RESULTS AND DISCUSSION
3.1. Solvent Selection for Extraction
This extraction mainly uses a solvent to separate the desired components from the plant cells. Makasana et al. [21] showed that the maximum solvent extraction efficiency was achieved when solvent mixtures, especially alcohol mixed with water, were used. It could be explained that when ethanol:aqueous solvent was applied, the water caused some plant components to expand and soften, and ethanol can be easily exposed in the plant matrix thereby increasing the extractability. The obtained results showed that a 60% ethanol concentration showed high extraction efficiency of biological compounds in banana peel extract (Table 2). At higher concentrations, perhaps because the amount of water was not enough to soften the cell walls, the extraction efficiency was markedly reduced. In addition, since ethanol has a lower boiling point and is safe for human consumption and it can also be easily evaporated during extraction, a 60% ethanol concentration was chosen for further experiments.
 | Table 2: Extraction TPC and TFC yield of banana peel. [Click here to view] |
3.2. Optimization of Extraction Process
The three factors that greatly affected the extraction process of banana peel powder are temperature, time, and material/solvent ratio. The efficiency of the process was assessed by total polyphenol content (mgGAE/g) and total flavonoid content (mgQE/g). The optimization process was carried out according to the RSM. In the optimization process, the independent variables of extraction temperature (A), extraction time (B), and solvent/solid ratio (C) were measured with the levels according to the Box–Behnken model.
Optimization of the dried banana peel extraction process was performed with 18 runs and 3 repetitions. The TPC and TFC obtained in the extract ranged from 46.01 to 62.88 mgGAE/g and from 5.54 to 7.44 mgQE/g, respectively. Model fitting plays an important role in explaining the accuracy of the RSM mathematical models, predicting the optimal value of the variance and the interaction between the selected parameters. The regression models obtained using the RSM for analysis of variance are presented in Table 3. The coefficient of determination (R2) is a measure of goodness of fit [22]. This investigation revealed that the R2 for TPC and TFC were 0.98 and 0.89, respectively, indicating that 98% and 89% of the trial’s TPC and TFC could match those predicted by the models accordingly. The RMSE value is a measure of the standard deviation of the prediction errors and the lack of fit is an indicator of the null hypothesis. The fit of the model was also evaluated through the p value of lack of fit. A good correlation model should have a good fit between the actual data and the model’s predictions; therefore, a model built with a statistically significant lack-of-fit test is desirable [23]. The lack of fit of the TPC and TFC models has a p value > 0.05 (Table 3), so the fit of the model is very high. In addition, the p value, which represents the confidence level of the models, is significant because the p value of the models is less than 0.05, which further confirms the reliability of the models with predictive responses in the current study [24].
The standardized effects of each factor were shown in Figure 1. From Figure 1, it was seen that TPC and TFC under extraction using ethanol were significantly affected by linear, quadratic, and cross effects. The p values of the independent variables, square variables, and interacting variables are less than 0.05, expected for AC interaction for TFC.
The regression models were obtained using Equation 2 and 3.
TPC = −597.7 + 1.93A + 2.51B + 15.2C − 0.006A2 − 0.009AB − 0.009AC − 0.007B2 − 0.017BC − 0.1C2 (2)
TFC = −12.6 + 0.17A + 0.29B + 0.18C − 0.0009A2 − 0.0008AB − 0.002B2 − 0.0008BC − 0.001C2. (3)
The response surface and main effects plot showed the interaction between TPC of banana peel powder extract and temperature, extraction time, and solvent/solid ratio (Figs. 2 and 3). At the appropriate time, temperature, and solvent/solid ratio parameters, the solvent dissolved the substances in the raw materials, which led to an increase in the total polyphenol content in the extract. TPC increases with an increasing extraction temperature, but when the temperature is too high, the content of biological compounds tends to decrease. When the extraction temperature increases, the solubility and diffusivity of polyphenol compounds and the conversion and wetting of the extracted material increase and the viscosity of the solvents decreases, resulting in the increase in the extraction efficiency of polyphenol compounds [8,25].

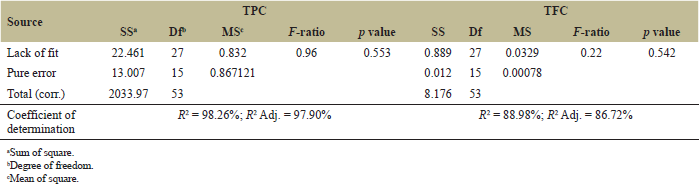

 | Table 3: Analysis of variance for TPC and TFC. [Click here to view] |
 | Figure 1: Standardized Pareto charts for (a) TPC and (b) TFC. [Click here to view] |
 | Figure 2: Main effects plot for TPC in extract. [Click here to view] |
 | Figure 3: Estimated response surface plot for TPC in extract. [Click here to view] |
Extraction time had an effect on extraction efficiency. Polyphenol content increased with increasing extraction time. However, when the extraction time was too long, the extraction efficiency might be reduced due to oxidation decomposition. This can be explained by Fick's second law of diffusion: as the extraction time increases, the content of substances in the material diffuses from the cell to the outside [26]. However, the extraction yield of bioactive compounds would not increase after a certain time. This time interval depends on other extraction conditions such as solvent, extraction temperature, and material/solvent ratio as well as the nature of the material and compound to be extracted [27]. With a longer extraction time, the polyphenol compounds inside and outside the raw materials had almost reached equilibrium, so the extraction would be slowed down. In addition, these compounds could be oxidized by many factors from the extraction environment such as temperature, light, and oxygen [28]. Similarly, when the solvent/solid ratio increased, the polyphenol content also increased, and then it reached equilibrium before decreasing. Due to the increase in the ratio of solvent/solid, it led to the difference in the concentration gradient of the substances to be extracted in the raw materials with the extraction medium. The extraction efficiency decreased [29].
 | Figure 4: Main effects plot for TFC in extract. [Click here to view] |
 | Figure 5: Estimated response surface plot for TFC in extract. [Click here to view] |
Similar to the trend of TPC under different extraction conditions, TFC increased with increasing extraction temperature and time, but when the extraction temperature and time were too high or too long, the content of bioactive compounds tended to decrease (Figs. 4 and 5). As mentioned above, polyphenols and flavonoids were well soluble in ethanol-containing solvents, and long-term/high-temperature extraction could facilitate solvent penetration into the cell matrix of raw materials thereby improving the extraction yield. Oxidation could also occur which tends to reduce antioxidant compounds [30,31].
An overlay plot helps to identify combinations of experimental factors which simultaneously optimize some responses. It does so by maximizing the desired function. The goals for each response are currently set to maximize TPC and TFC. Based on the overlay plot in Figure 6, the optimal extraction conditions were found as 76:1 (solvent : solid, ml/g) at 68oC for 48 minutes. Under these conditions, the TPC and TFC of the extract were 62.41 mgGAE/g and 6.98 mgQE/g, respectively.
 | Figure 6: The overlay plot for TPC and TPC in extract at different conditions. [Click here to view] |
4. CONCLUSION
The RSM could be effectively and accurately applied in predicting TPC and TFC in banana peel extract. The obtained banana peel extract had high levels of TPC and TFC, which are substances with antioxidant activity, so in further research, it is recommended that the study should be applied to food/medical products as a source of natural antioxidants.
5. ACKNOWLEDGMENT
The authors acknowledge the financial support to Can Tho University, Vietnam from the Research fund project code number T2020-67.
6. AUTHOR CONTRIBUTIONS
All authors made substantial contributions to conception and design, acquisition of data, or analysis and interpretation of data; took part in drafting the article or revising it critically for important intellectual content; agreed to submit to the current journal; gave final approval of the version to be published; and agree to be accountable for all aspects of the work. All the authors are eligible to be an author as per the international committee of medical journal editors (ICMJE) requirements/guidelines.
7. CONFLICTS OF INTEREST
The authors report no financial or any other conflicts of interest in this work.
8. ETHICAL APPROVAL
This study does not involve experiments on animals or human subjects.
9. PUBLISHER'S NOTE
This journal remains neutral with regard to jurisdictional claims in published institutional affiliation.
